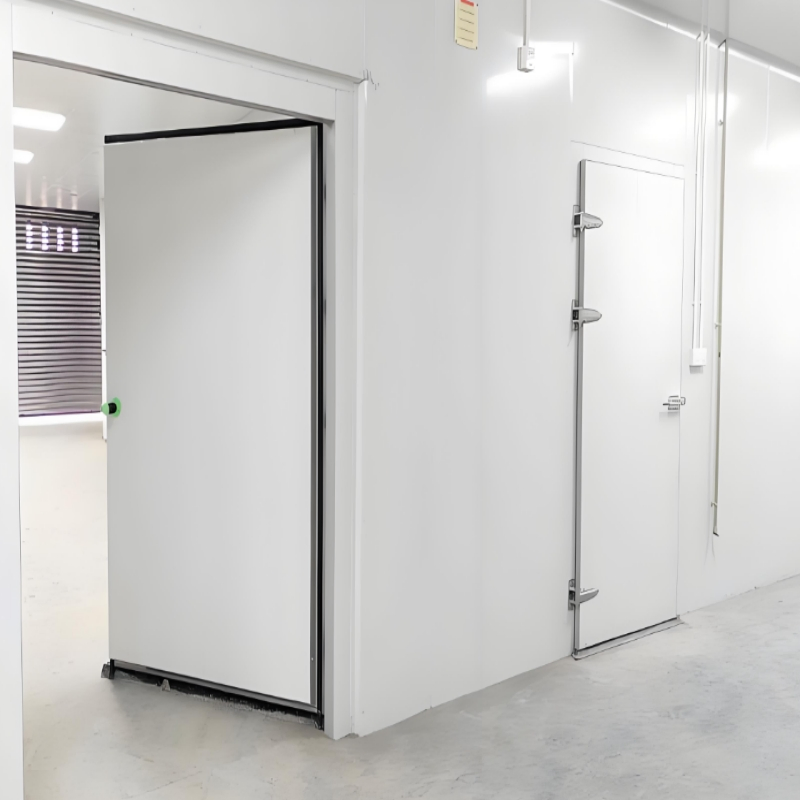

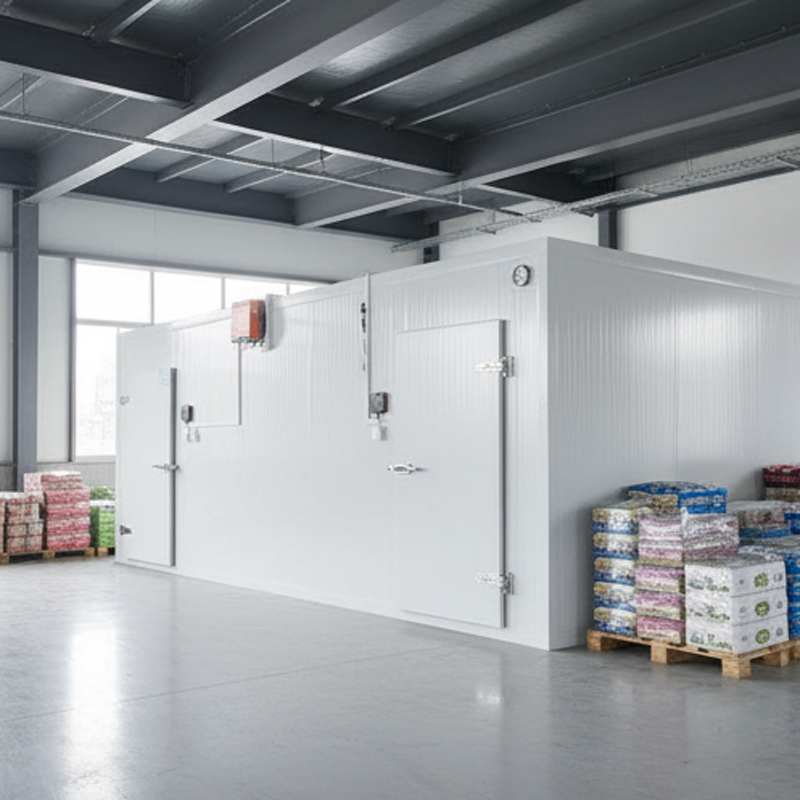

Large Customizable Food Cold Storage

Customization:	Available
After-sales Service:	24 Hours
Temperature:	0-10℃

Send Inquiry

Product Description

📋 Basic Specifications

Refrigerant

R404A

Size

Medium / Customizable

Structure

Assembled

Usage

Food, Blood, Medicine, Fruits, Vegetables, Meat

Warranty

1-2 Years

Certification

RoHS, UR, ISO, CE, CCC

MOQ

1 Set

Capacity

50,000 Units / Month

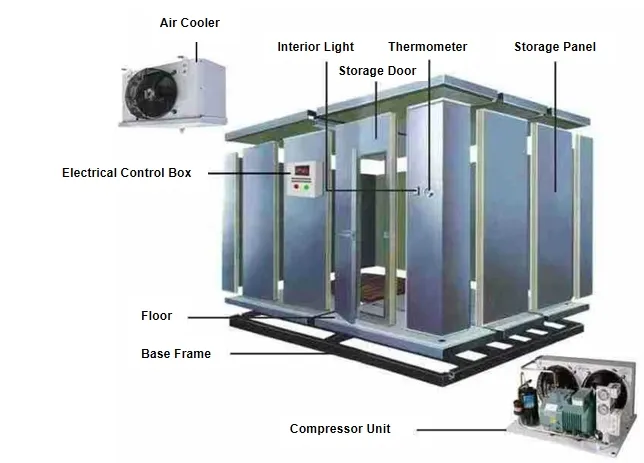

❄️ Cold Storage Overview

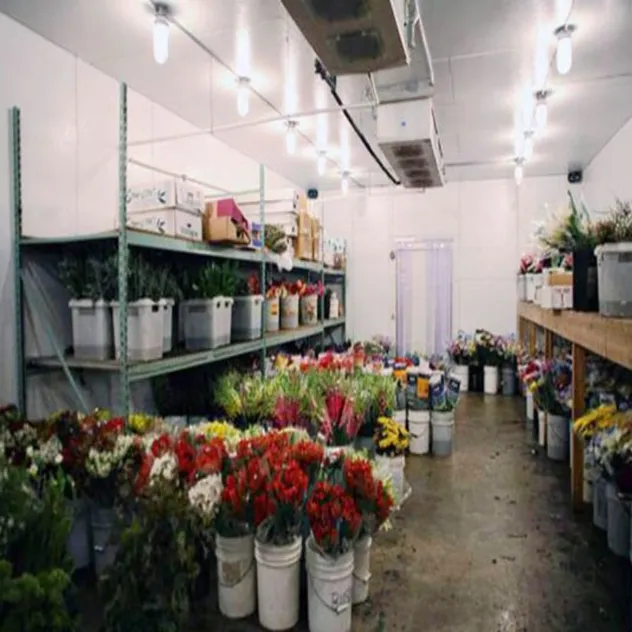

Fruit, Vegetable & Flower Storage: 0ºC to +5ºC. Ideal for maintaining freshness, eggs, and medicinal dry goods.
Meat & Aquatic Storage: -15ºC to -25ºC. Designed for long-term preservation of aquatic and meat products.

⚙️ Technical Specifications

Room Type	Temp Range	Applications	Panel Thickness
Cooler Room	-5 ~ 5 ºC	Fruits, vegetables, milk, cheese	75mm, 100mm
Freezer Room	-18 ~ -25 ºC	Frozen meat, fish, seafood, ice cream	120mm, 150mm
Blast Room	-30 ~ -40 ºC	Fresh fish, meat (rapid freezing)	150mm, 180mm, 200mm

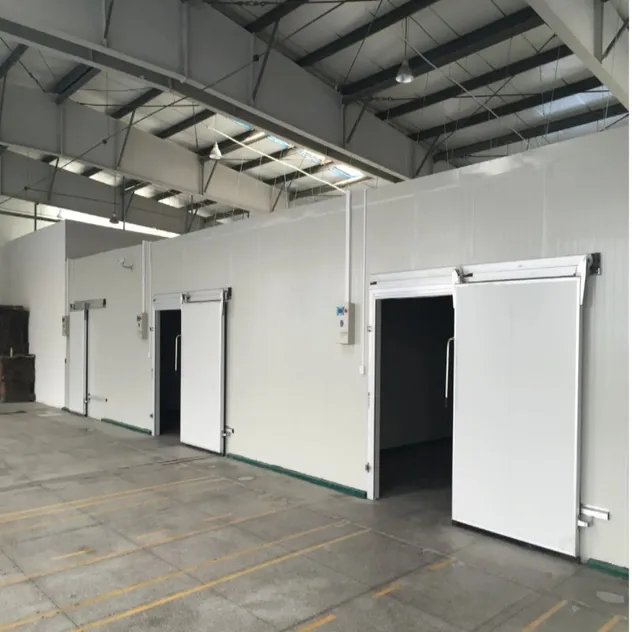

Panel Features:

Material: Painted steel sheet, stainless steel, or aluminum.
Insulation: Polyurethane (PU) Sandwich Panels.
Connection: Internal eccentric hooks for flat, seamless assembly.
Density: 38-50Kg/m³.

🌀 Condensation & Cooling Systems

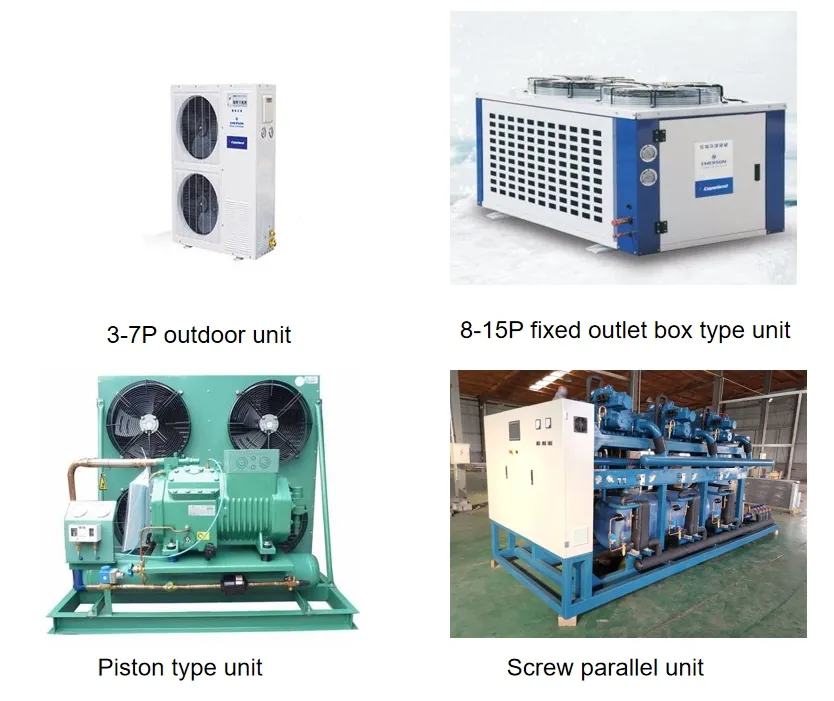

Compressor Options

Semi-enclosed or screw type (2HP - 50HP). Air-cooled or water-cooled condensers available for high ambient temperatures. Supports R22, R404a, and R410a.

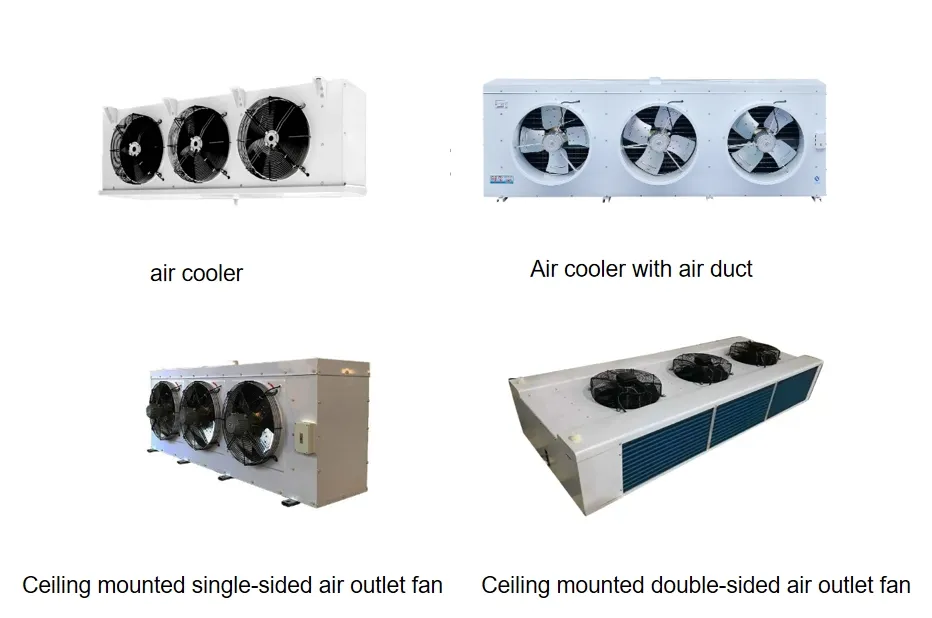

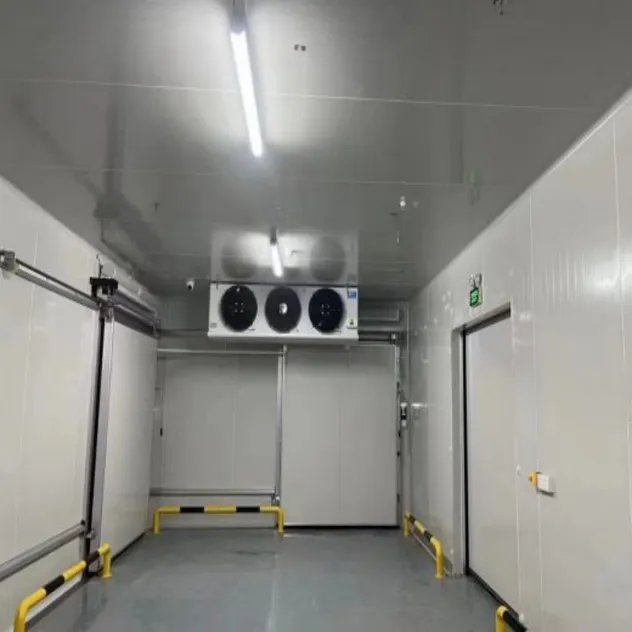

Air Cooler (Evaporator)

DL, DD, and DJ types. Compact structure, uniform temperature distribution, and high efficiency for various storage requirements.

🚀 Advanced Technologies

IQF (Individual Quick Freezing): Preserves individual portions without clumping.

Blast Freezing: Rapidly lowers temperature to -18°C or below to lock in texture.

🏆 Why Choose Our Solutions?

We provide a comprehensive range of refrigeration equipment including high, medium, and low-temperature cold storage, units, display cabinets, and ice makers. Our professional teams specialize in custom design, installation, and after-sales maintenance for the food processing, pharmaceutical, and chemical industries.

Quality Assurance

❓ Frequently Asked Questions

What panel thicknesses are available for cold rooms?

We offer a range of thicknesses including 50mm, 75mm, 100mm, 150mm, and 200mm to suit different temperature requirements.

What materials are used for the panel surfaces?

Surface materials include PPGI (Color steel), SS304 Stainless Steel, and Aluminum options.

Do you provide the complete cold room set?

Yes, we provide the full system including condensing units, evaporators, panels, fittings, and related products like ice machines.

Can the cold room sizes be customized?

Absolutely. Both OEM and ODM services are available to customize dimensions and specifications according to your project needs.

What is the standard warranty period?

We provide a 12-month warranty. During this time, our technicians are available 24/7 for online support and spare parts provision.

Which temperature range is best for seafood?

For short-term preservation, 0°C to 4°C is used. For long-term frozen storage, -18°C to -30°C is required.
