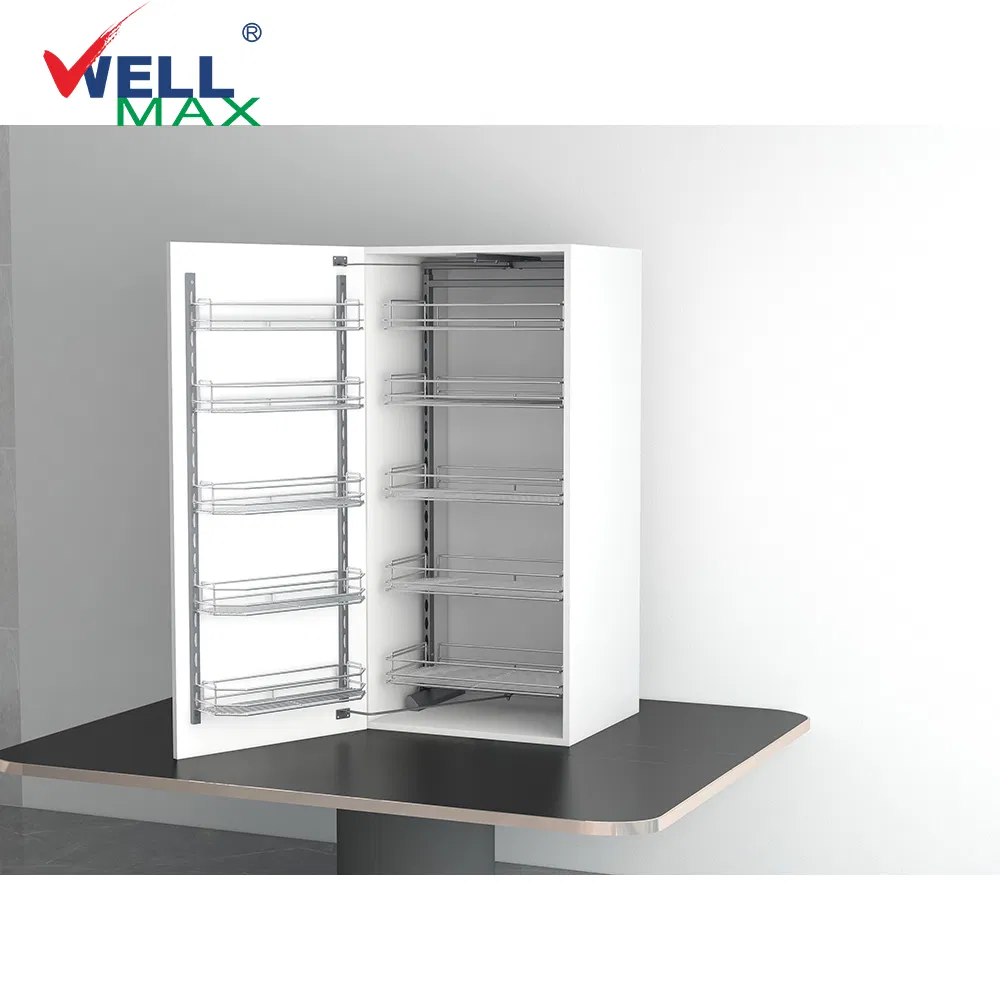

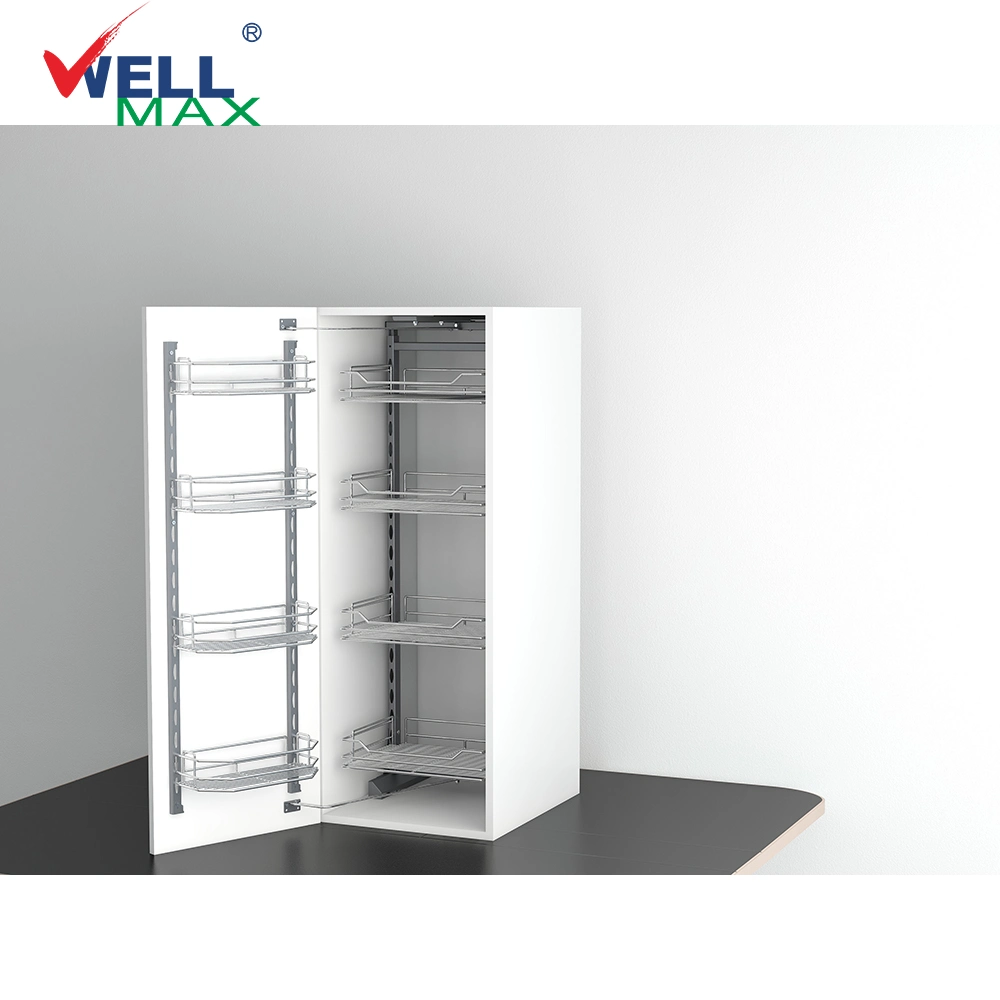

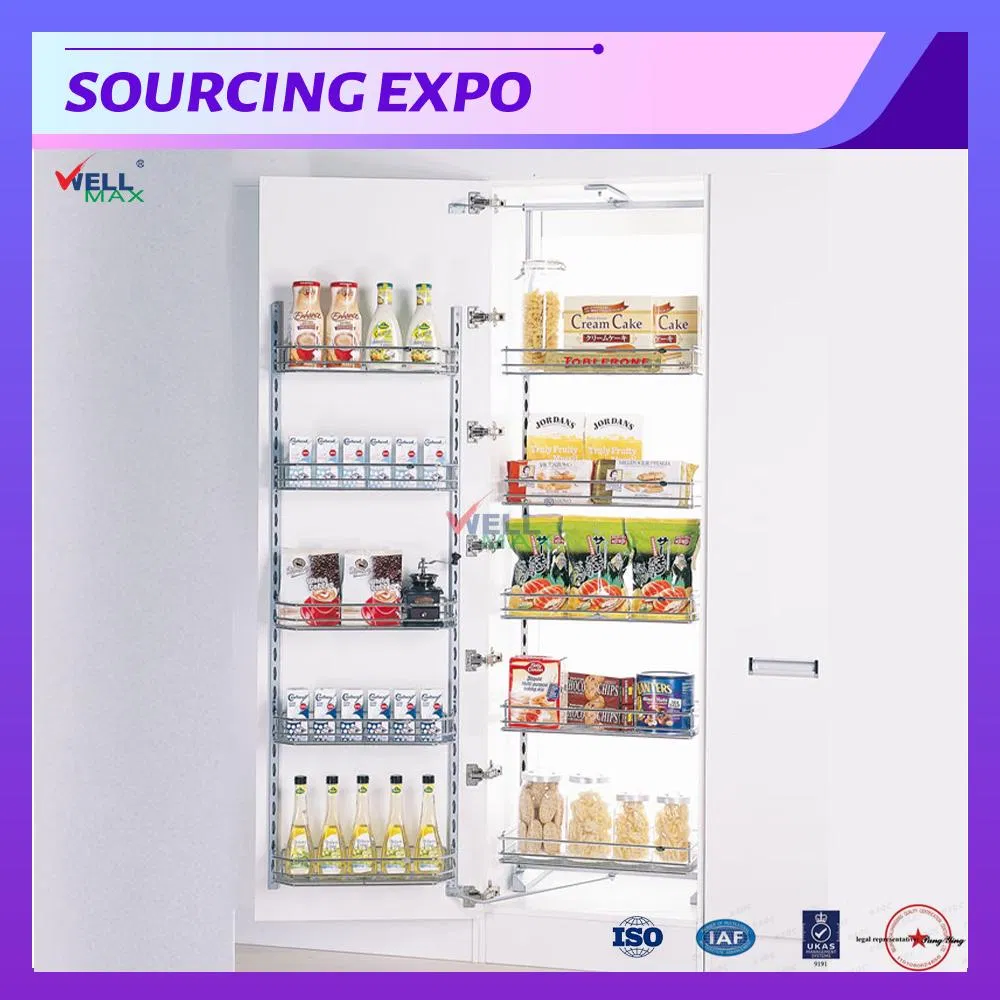

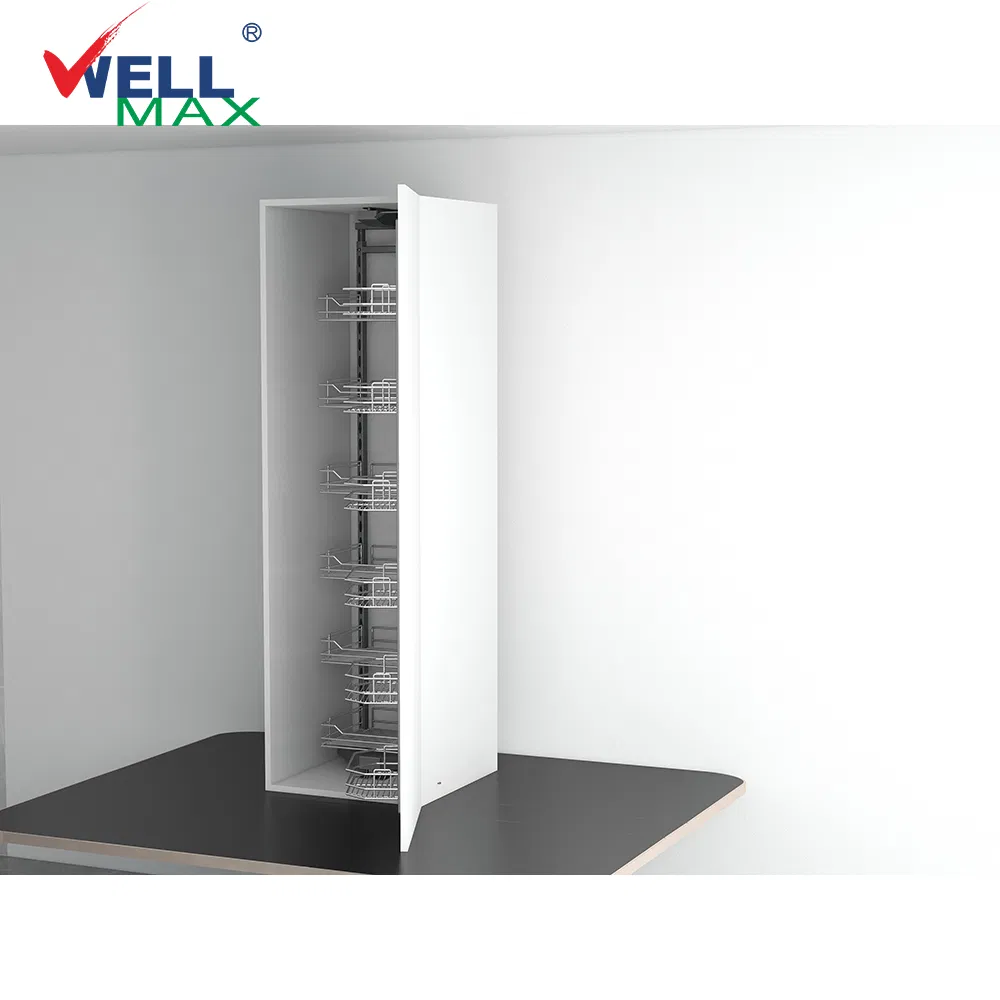

Wellmax Kitchen Accessory Hardware Storage Pantry Organizer
Wellmax Kitchen Accessory Hardware Storage Pantry Organizer
Wellmax Kitchen Accessory Hardware Storage Pantry Organizer
Wellmax Kitchen Accessory Hardware Storage Pantry Organizer
Wellmax Kitchen Accessory Hardware Storage Pantry Organizer
1 / 5
Wellmax Kitchen Accessory Hardware Storage Pantry Organizer
Wellmax Kitchen Accessory Hardware Storage Pantry Organizer
Wellmax Kitchen Accessory Hardware Storage Pantry Organizer
Wellmax Kitchen Accessory Hardware Storage Pantry Organizer
Wellmax Kitchen Accessory Hardware Storage Pantry Organizer

Wellmax Kitchen Accessory Hardware Storage Pantry Organizer

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋 Overview
Model NO.
PTJ022B
Specification
500*385*(1650-1950)mm
Origin
China
HS Code
9403900099
Capacity
500,000 units
📦 Product Description
  • Equipped with heavy-duty slides on both the carrier mechanism and top guide for smooth operation.
  • Powerful carrying capacity with a maximum load of up to 120 kg.
  • Designed specifically for hinged tall cabinets with doors.
  • Standard size options for 450mm and 600mm width cabinets, with customization available.

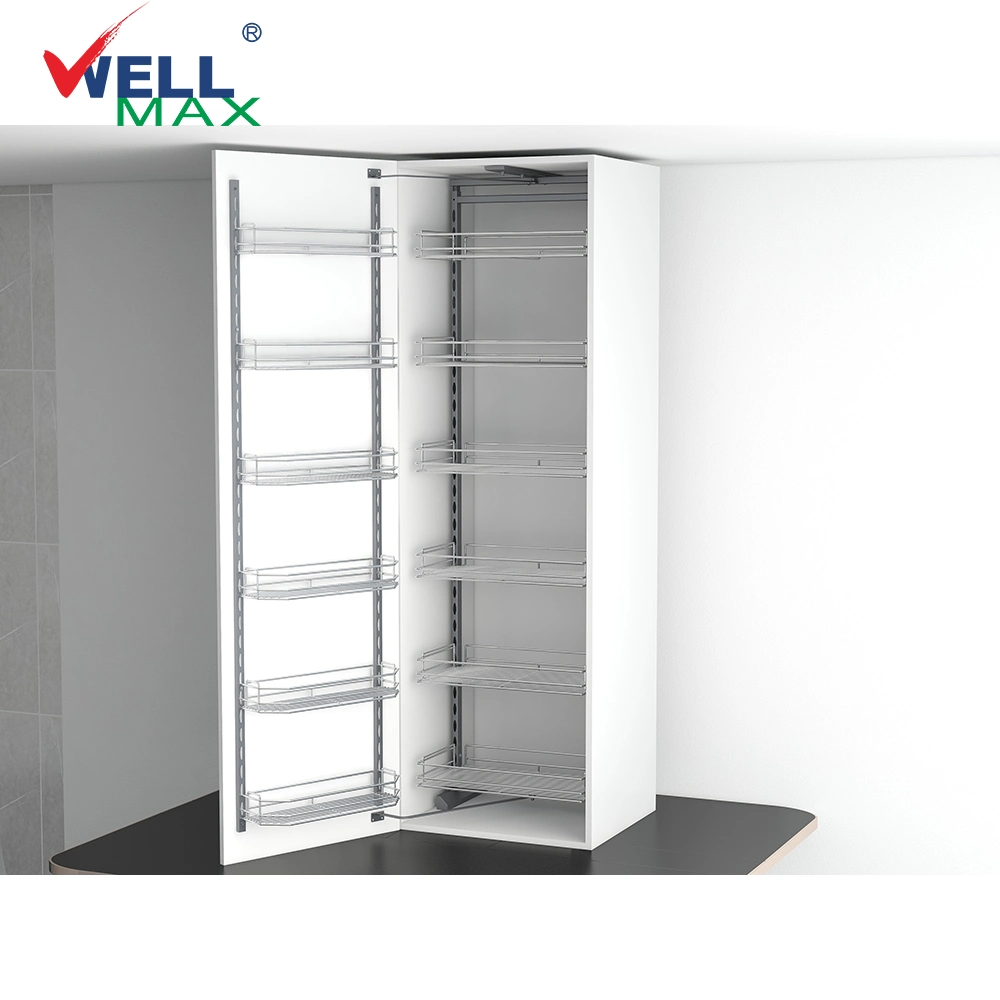

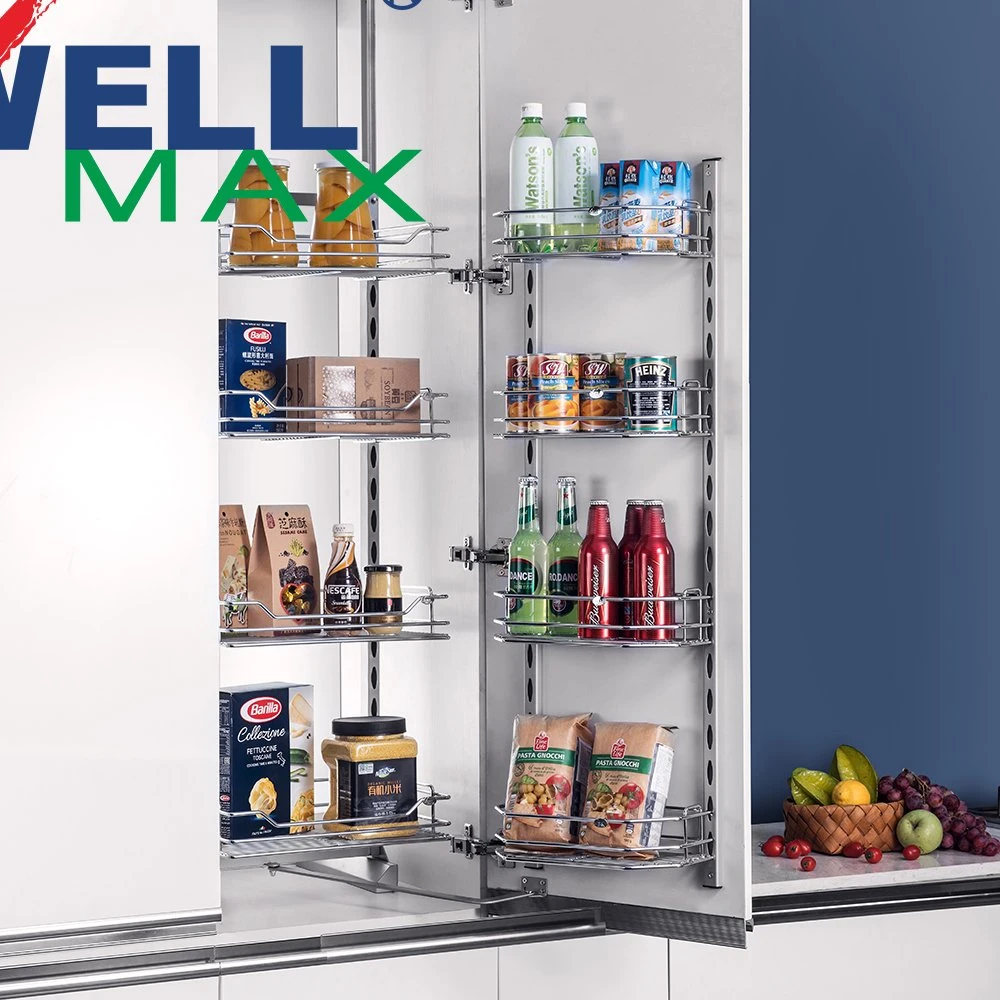

  • Larder unit basket design: When the door opens, the back body moves forward for easy access.
  • Adjustable basket placement on the frame based on required height levels.
  • Flexible product length that can be adjusted to match the cabinet's height.
  • Durable silver grey painted carrier mechanism and frame with high-quality chrome plated baskets.
  • Multiple material options including wire baskets, wooden bottom baskets, or glass baskets.
Name Item No. Cabinet Width Dimensions (DxWxH) Configuration Material Finish
Larder Unit PTJ022A 450mm 500 x 385 x (1250-1550) mm 5 Layers Iron Silver grey + Chrome
Larder Unit PTJ022B 450mm 500 x 385 x (1650-1950) mm 6 Layers Iron Silver grey + Chrome
Larder Unit PTJ022C 450mm 500 x 385 x (1850-2150) mm 6 Layers Iron Silver grey + Chrome
Larder Unit PTJ022D 450mm 500 x 385 x (1150-1450) mm 4 Layers Iron Silver grey + Chrome
Larder Unit PTJ022A-600 600mm 500 x 535 x (1250-1550) mm 5 Layers Iron Silver grey + Chrome
Larder Unit PTJ022B-600 600mm 500 x 535 x (1650-1950) mm 6 Layers Iron Silver grey + Chrome
Kitchen Hardware Storage Pantry Organizer

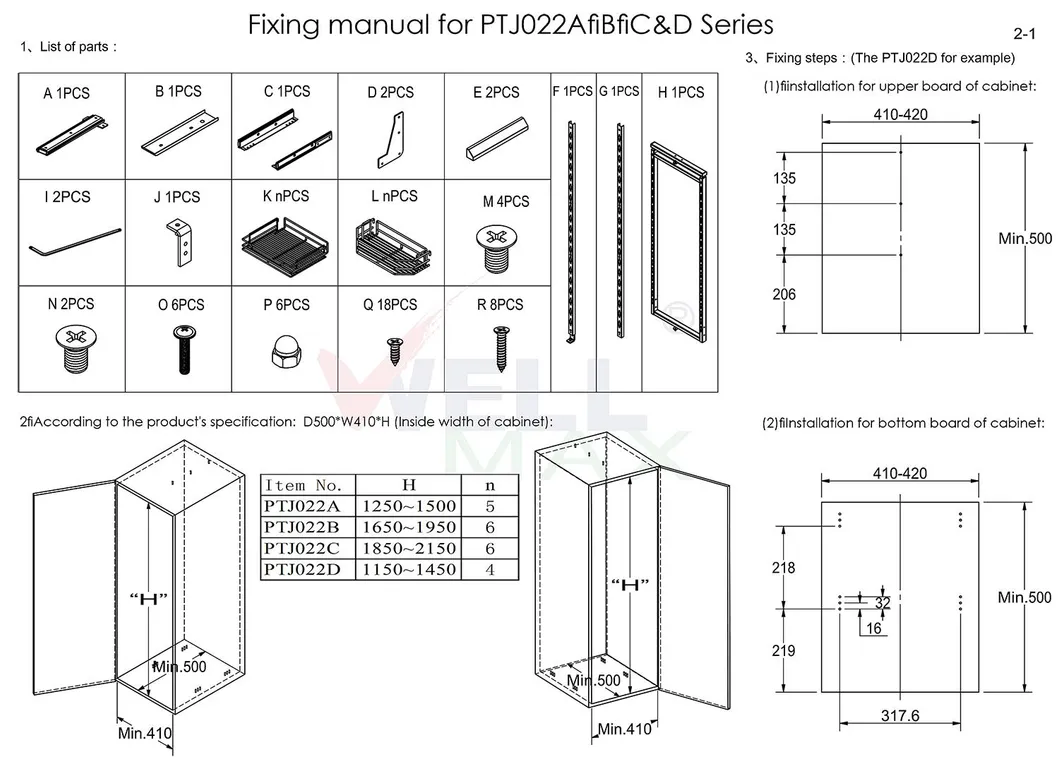

🛠️ Installation Instructions
Installation Guide
🏢 Technical Showcase & Capacity

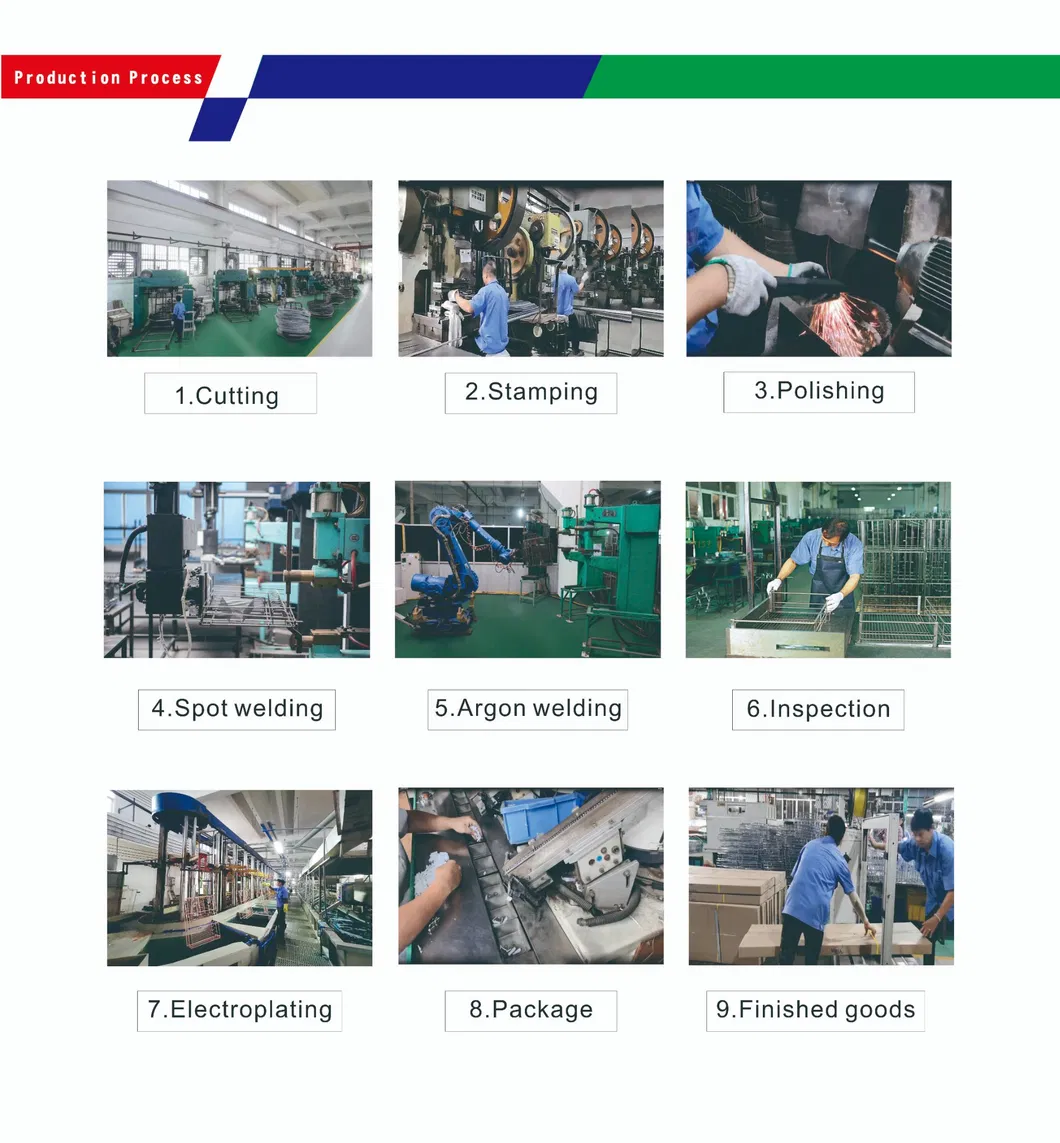

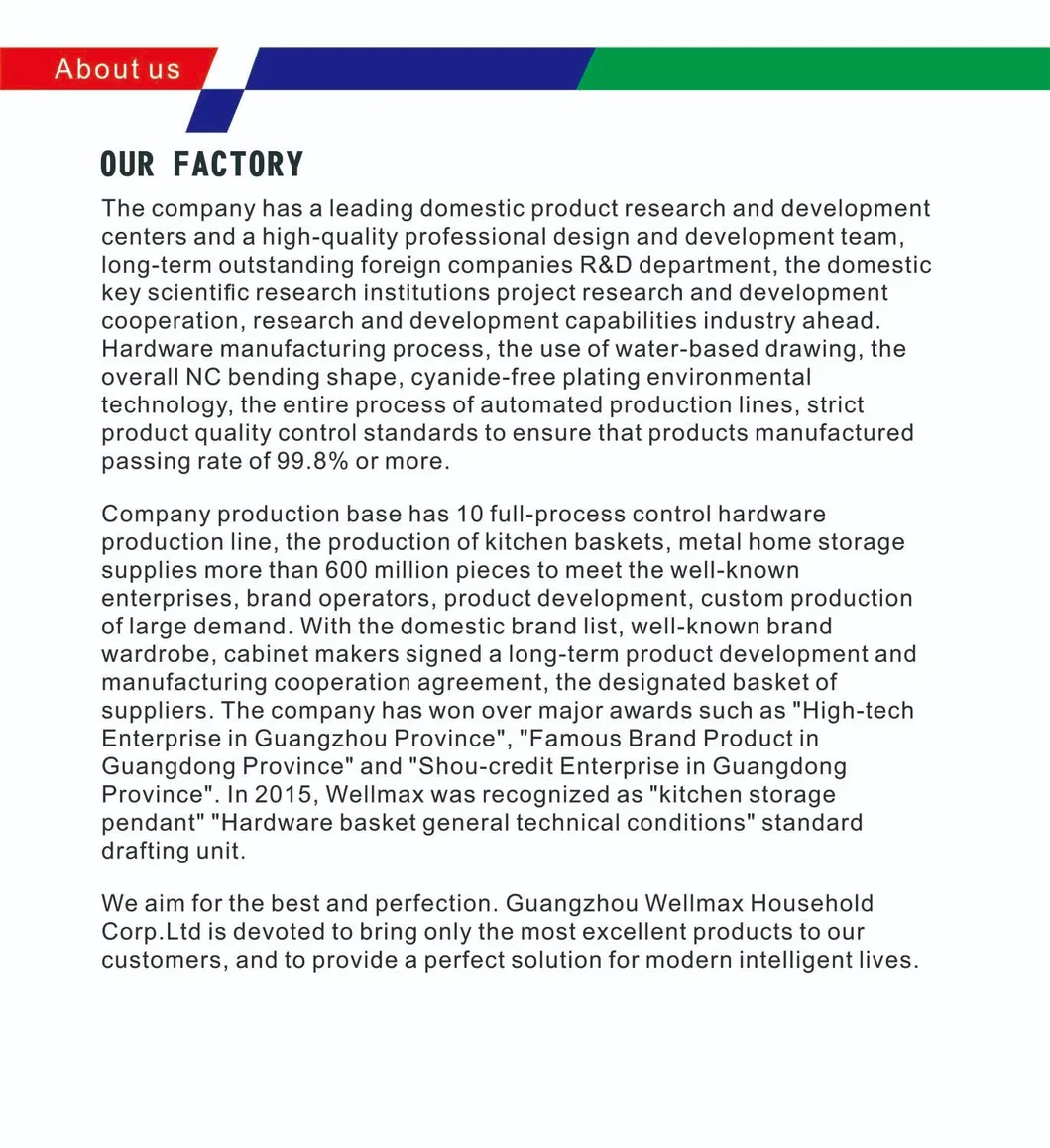

Showcase 1 Showcase 2 Showcase 3 Showcase 4 Showcase 5 Showcase 6 Showcase 7 Showcase 8
❓ Frequently Asked Questions
What is the maximum weight the larder unit can hold?
The unit is designed for heavy-duty use with a maximum carrying capacity of 120 kg.
Is the height of the frame adjustable?
Yes, the product height can be adjusted to fit different cabinet ranges, such as 1250-1550mm or 1650-1950mm.
Which cabinet sizes are compatible with this system?
Standard options are available for 450mm and 600mm cabinet widths, but other sizes can be customized.
How does the access mechanism work?
It features a linkage design where the back body automatically comes forward when the cabinet door is opened for easy access to all baskets.
What materials are available for the baskets?
You can choose between classic wire baskets, modern wooden bottom baskets, or premium glass-sided baskets.
What finish is applied to the hardware?
The carrier frame is finished in silver grey paint, while the storage baskets are high-quality chrome plated for rust resistance.
